Automatic Pressure viscous liquid filling machine

Model No.︰

-

Brand Name︰

Longway

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Specifications

Automatic Pressure viscous liquid filling machine
1.Canned capacity:0.01
2.Capacity:2400bottles per hour



Automatic Pressure viscous liquid filling machine





viscous liquid filling machine is filling valve with special links, and filling Cream products, especially for high viscosity materials (such as the thick sauce, chili sauce, tomato sauce, seed coating, micro-emulsions, suspensions, etc. ) is relatively effective, and high precision.

It adopts PLC programmable control, together with the 6-inch touch screen human-machine interface system implemented automatically into the bottle, automatic filling, automatic out of the bottle, electrical, pneumatic element parts are an international brand, to ensure excellent quality and lasting stability performance.

The device structure is simple, easy to operate, is the ideal material for high-viscosity filling equipment.

It is equipped to prevent leaking and filling drawing bulkhead, after filling to ensure no leak, no drawing.



1.Control system - with Mitsubishi PLC control system, filling dose of random fine-tuning.



2. Operation Interface - 6-inch color touch-style user interface, intuitive and simple, safe and reliable



3. Feature Enhancements - Cutting with anti-drip device, can dive filling materials with functional properties. (This feature can be optional)



4. Electrical components - are used internationally renowned brands, ensuring that equipment reliability, high accuracy;



5. Machine parts are of high quality 304 stainless steel.



6. Count testing - real-time count, to reflect on the work output directly.



7. Filling Detection - No bottle no filling, bottle filling number is not enough



8. Maintenance situations - the machine meet the GMP requirements, easy disassembly, cleaning maintenance.



9. Exchange standard - filling specifications change, simply adjust, easy to get.



10. Environmentally friendly configuration - configuration of the environmental framework in which the machine's operating environment more hygienic. (The environmental profile can be optional)





Technical parameters

1 Application bottlenecks 45-120mm
2 Measurement accuracy 0.01
3 Canned capacity 500-5000ml
4 Capacity 2400bottles per hour
5 Air pressure 0.7-0.9MPa
6 Power supply 380V/50Hz
7 Dimension 2000*850*1800mm
8 Weight 500kg

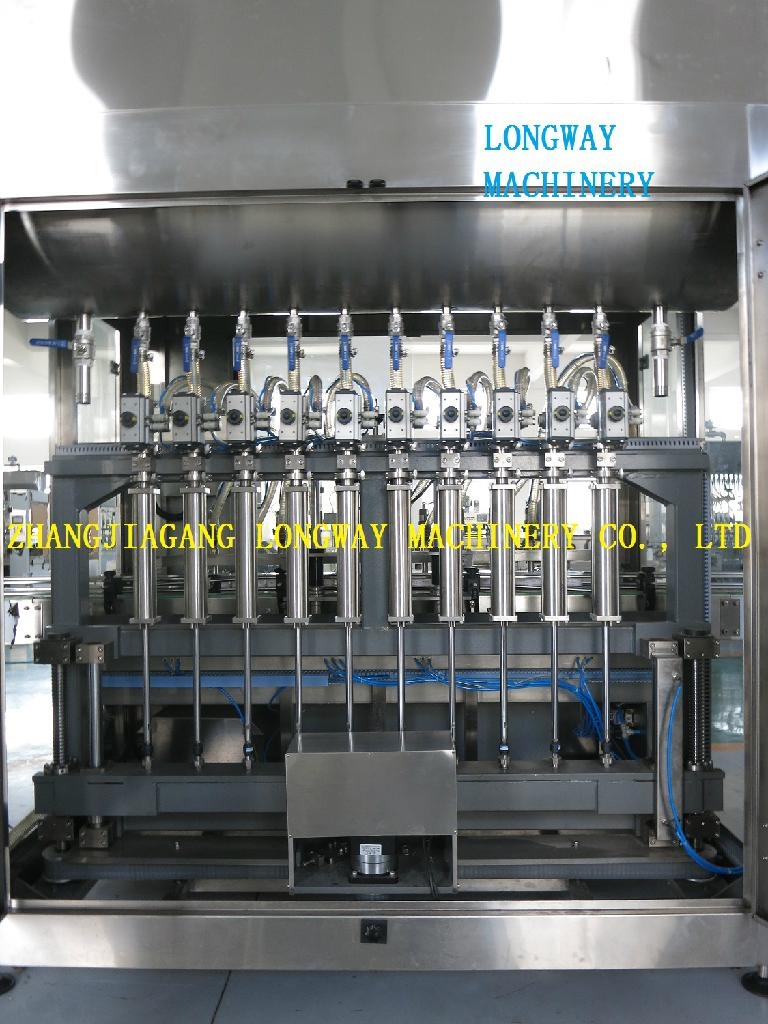

Product Image
