Product Description

Double sides or single side automatic labeling machine for bottles



Product Description

 Double sides or single side automatic labeling machine for bottles





This machine is applicable for flat or circular surface labeling, either for single side or for double sides. Such as flat, square or round container, even optionally, the 3rd label on the neck of the container , the detail application description as following table:



Issue

Application Description

Applicable Container

One of the following scenarios can be selected for one machine:

1)         Flat surface , such as flat or square bottle as the standard, and

2)         Circular surface, such as round bottle as the optional

Applicable Type of Label

Self-adhesive Label

1)         Non-transparent as the standard

2)         Transparent as the optional

Number of the Label

1)         2 labels as the standard

2)         3 labels as the optional





Following are the reference style of containers:



Double sides or single side automatic labeling machine for bottles







Double sides or single side automatic labeling machine for bottles





Standard Features

 •     Multiple function machine , suitable for flat or square container , signal or double labeling

•     Stainless Steel 304 and High Class aluminum alloy as the construction of the machine

•     Unique labeling heads enable the label’s tightening and tension more steady. And assure the labeling accuracy.

•     The direction guiding device and top fixing belt are the necessary devices to ensure the automation production.

•     The professional labeling device enhances the quality of the labeling. To ensure no wrinkles and no bubbles. And tightness        of the overlapping.

•     Calibration scales are convenient device for the contain shape adaption

•     PLC and Touch screen HMI control to achieve intelligent operation and trouble shooting

•     Intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction



Optional Features

•     labeling on the neck of the container function

•     Round container labeling reinforce device

•     Transparent labeling detecting sensor

•     Code bar online printing





Double sides or single side automatic labeling machine for bottles





According to the PLC parameter setting through touch screen HMI, the container from the upstream process , through the conveyor. Pass the container separating wheels, and movement direction controlled by the direction guiding device and container top fixing belt. Sychonize with container and labeling detecting system, the container get accurate labeling by the body and/or neck labeling heads. The labeling reinforcing device will ensure the labeling quality as the final step.



Double sides or single side automatic labeling machine for bottles

Double sides or single side automatic labeling machine for bottles



Except for the design of the machine, the key components configuration will determine the quality of the machine or system, below is the shortlist configuration of the key components:



No

Components

Material / Short List

1

Products Touching Parts

Stainless Steel 304 as the standard,

Stainless Steel 316,316L at the Buyer’s option

2

Structure

Stainless Steel 304

3

Surface

Stainless Steel 304

4

Programmable Logic Controller

Delta, Siemens, Mitsubishi, Panosonic

5

Touch Screen

Weinview, Siemens,Delta,Kinco, Panosonic

6

Stepper/Servo Motor

Teco, Delta, Panosonic,Leadshine

7

Frequency Convertor

Delta, Schneider,Leadshine

8

Key Electric Components

Schneider,Chint, Ls, Ark

9

Key Protection & Relay

Schneider,Delixi

10

Cylinder, Filter

Airtac , SMC

10

Photocell Sensor

Autonics , Keyence, Leuze, Panosonic, Datalogic

11

Vacuum Sucker

Airtac, Sunx

12

Temperature Controller

Omoron







Double sides or single side automatic labeling machine for bottles





Catalogue 1J-x-xxxxx

TBJ-120

Control Method

Automatic

Number of Label

2 as the standard , 3 as the optional feature

Transparency of Label

Non-Transparent

Adhesive

Self-Adhesive

Coding/Printing Machine

Exclude

Width of Label

20-170 mm

Length of Label

20-200mm

Labeling Speed

30-180 pcs/min

labeling Tolerance

+/- 1mm



Diameter of Container

110mm -Max

Roller Outer Diameter

350mm-Max

Roller Inner Diameter

76mm

Width of Convey

101.6mm

Compress Air Required

Not Applicable

Air Consumption

Not Applicable

Power Requirement

AC 220V 50/60HZ

Electricity Consumption

1.3Kw

Approximate Weight ( Net)

700 kg

Dimension ( ‘mm )

2200*1200*1200mm







Double sides or single side automatic labeling machine for bottles



Practically, compare with the simple machine in the market, we are more focusing on the details, the advantages as indicated in the following table:



Labeling Target

Our Design

No wrinkles

Reasonable label guiding device, include

a)       Label guiding and pulling

b)       Label tension maintaining ,

c)       label separating processes

No bubbles

Reasonable labeling and Reinforcing devices

Accurate labeling

a)       High quality  and position adjustable  label detecting sensor

b)       Container positon adjustment device

c)       Labeling synchronization  control

Flexible operation

a)       Pedal  Control /  Automatic  Detecting

b)       Single or double  labels

c)       Code printing can be integrated

d)       Flexible programming by PLC

e)       Necessary protection, like short circuit , overload etc

Documentation

In ordr to enable you understand our products conveniently , following documents are available, but not limited,  to be provided upon the stage of purchasing



No

Document

Code

Description

1

Products Selection Guide

SG

To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement

2

Products Profile

PP

To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features

3

Installation Instruction

IN

To explain the step of installation of the equipment, and include commissioning instruction as well

4

User Manual

UM

To cover the content of Operation & Maintenance and Trouble Shooting



Our Services

Double sides or single side automatic labeling machine for bottles



Customization



Customization Philosophy



The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:



•     labeling on the neck of the container function

•     Round container labeling reinforce device

•     Transparent labeling detecting sensor

•     Code bar online printing

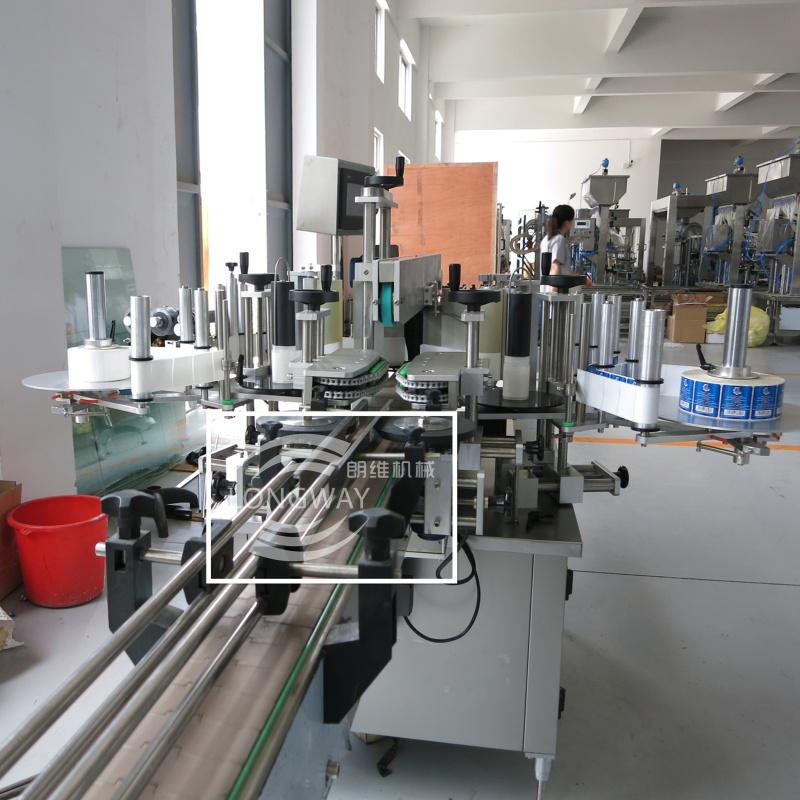

Product Image
