This machine adopts international advanced technology, cover the circle label on the PET bottle, and then hot shrinking to fix on the position which bottle body designated.

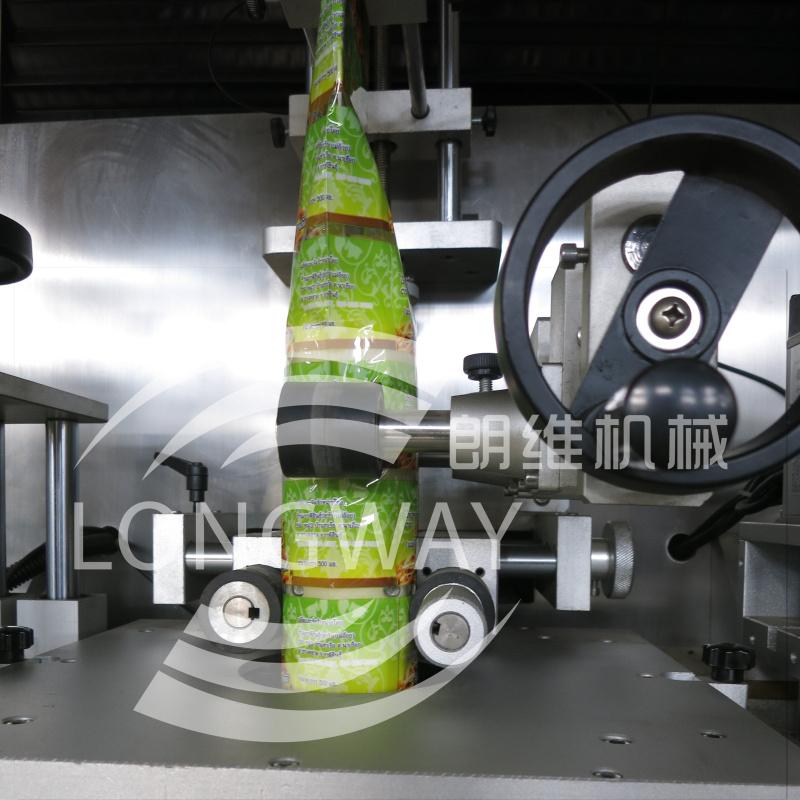

The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating, it is convenient to replace the material. The special cutter head designing, make the film-rolling cut mor exactly and reliably.
Technical parameters
Model

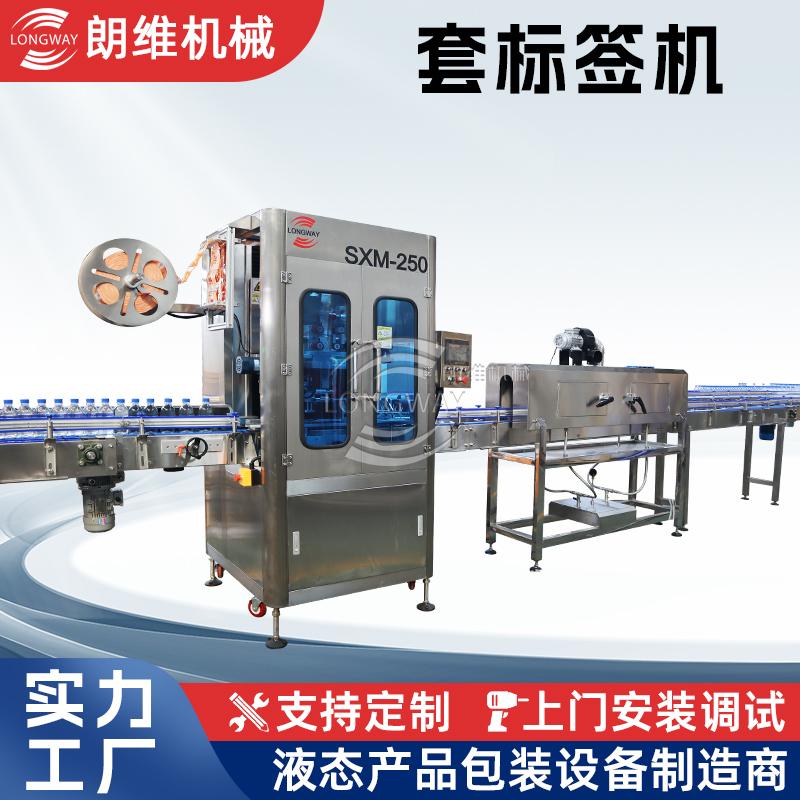

SXM-250
Label length
35-250mm
Label thickness
0.035-0.08mm
Label material
PET, PP, PE, PVC, OPS, etc.
Production capacity
Max 15000BPH
Suitable bottle diameter
28-120mm
Suitable bottle height
150-320mm
Suitable bottle type
round type, elliptical type, square type, curve type
