automatic bottle unscramble for plastic bottles

Model No.︰

LP

Brand Name︰

LONGWAY

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

LP-200 Automatic Bottle Unscramble is making up of bottle elevator , round plate, bottle-reject, bottle-arranging parts and the electrical cabinet . Put disordered bottles to the bottle elevator, through round plate, conveying belts, bottle arranging parts , then bottles can stand on the belts. This machine is characterized by the compact structure, simple operation principle, mature technique and stable movement.



Apply to the bottle diameter Φ45-Φ90mm

• Height for bottle 80-240 mm

• Production capacity 200bottles/min (Note The diameter of bottle Φ45 mm,height 80 mm 200 bottles/min The diameter of bottleΦ90 mm,height240 mm 90 bottles/min )

• Air pressure 0.5-0.7Mpa

• Power source ~480V,50Hz

• Total power 1.5 kw

• Weight 450 kg (Bottle elevator 100kg)

• Unscrambler External dimensions 2600×1500×1500(L×W×H) mm

• Bottle elevator External dimensions 2200×1200×1900(L×W×H) mm

Elevator  Part

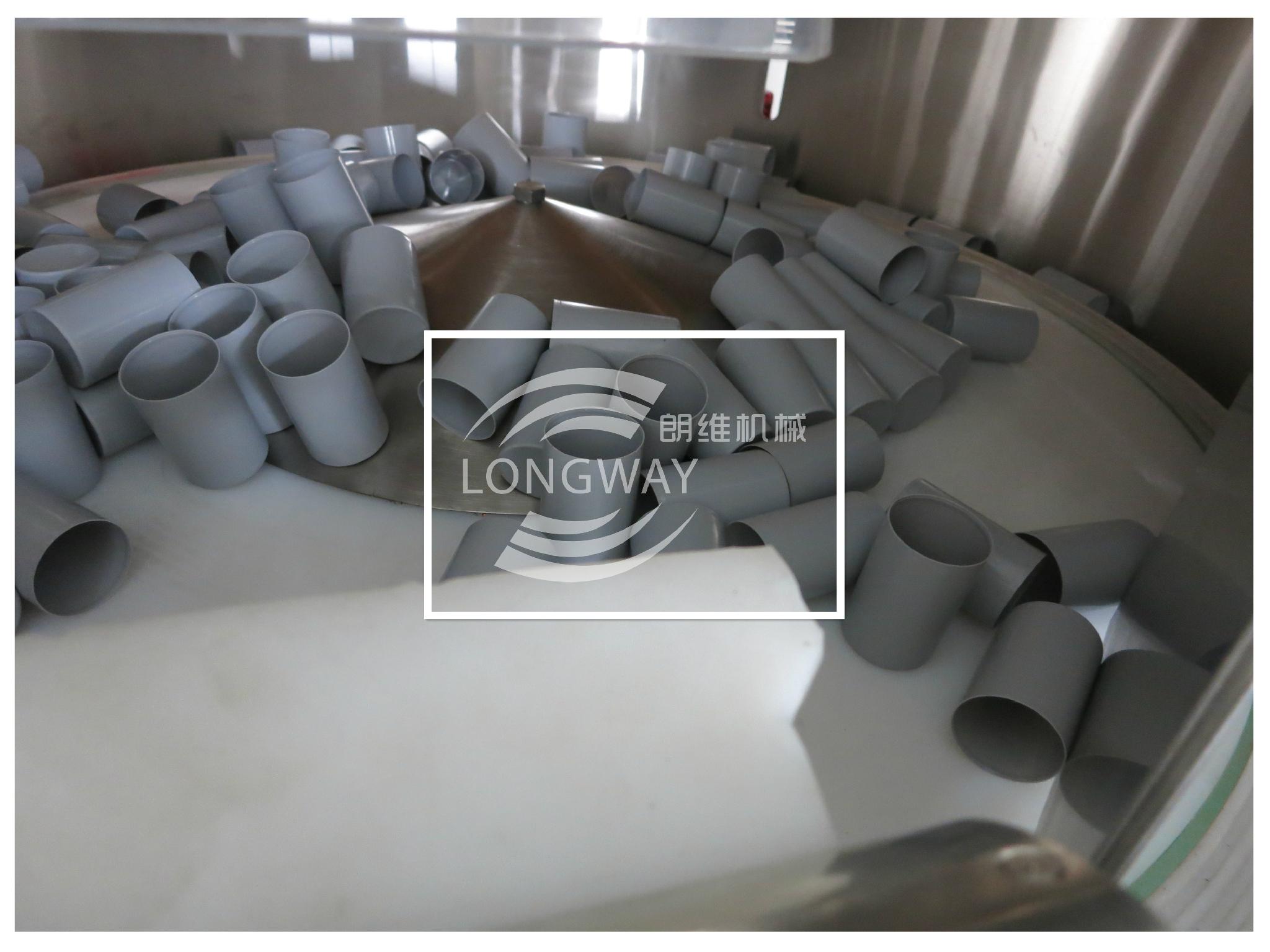

Rotary Feeding  Part

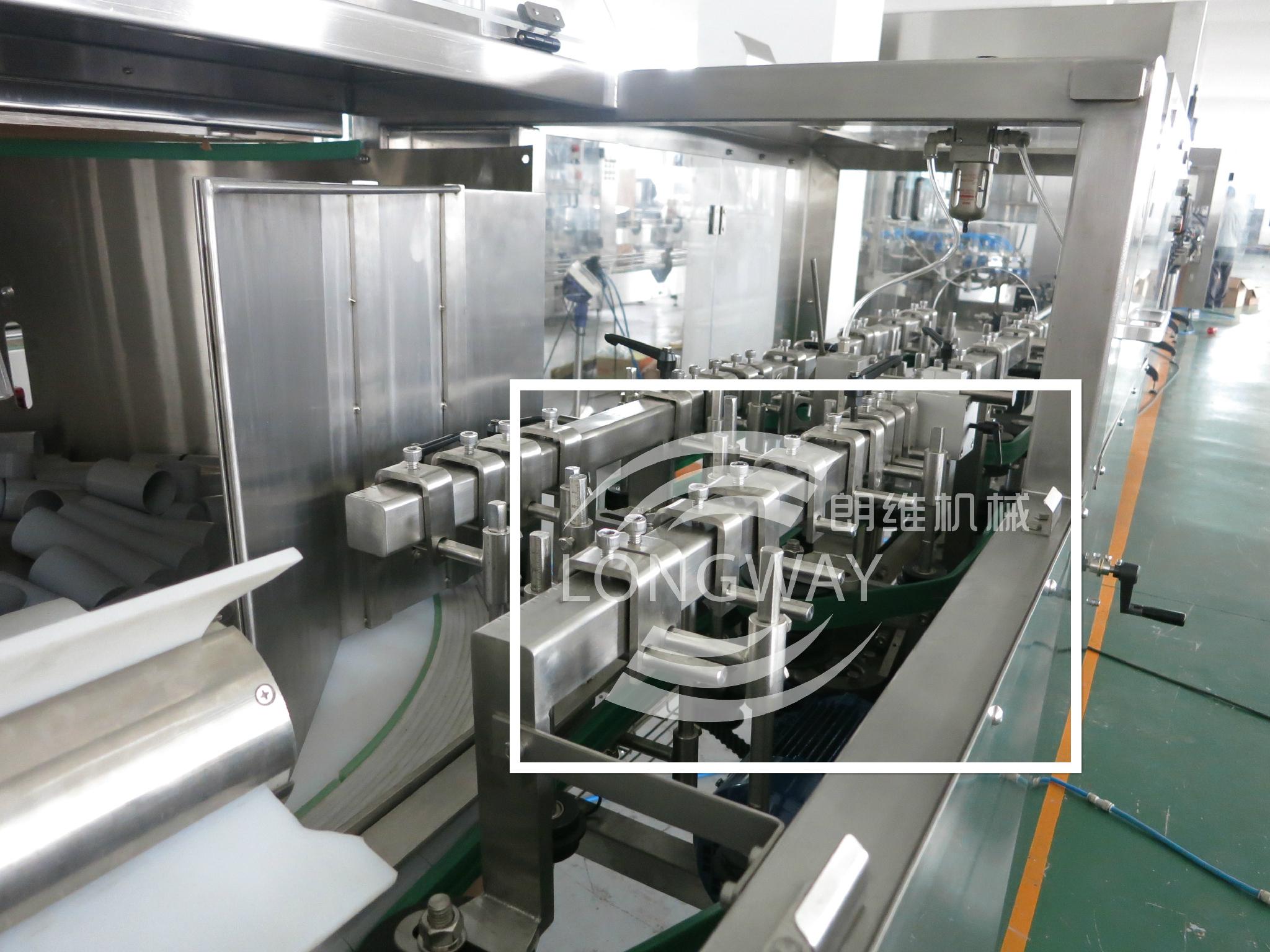

Arrange Part







MORE PICTURE OF MACHINE





Product Image
