ZQ-A1 Full Automatic Blow Molding Machine

Model No.︰

ZQ-A1

Brand Name︰

Longway

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description


ZQ-A1 Full Automatic Blow Molding Machine



Features:
ZQ-A1 Fullautomatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes . it is widely used to produce the carbonated bottle,mineral water bottle, pesticide bottle,oil bottle,cosmetics bottle,wide-mouth bottle ect.



*Reasonable design , full automaticlly control, save power and labor.
*Adopting high quality components.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Full automatic process with low investment,high efficiency , quick and safe for operating,easy for maintenance.
*We have perfect service after seles.

Main Parameter:
Model ITEM ZQ-A1(2L) ZQ-A1(5L)
Productivity Depend on bottle design 800-1200 PCS/H 500-800PCS/H
Product type volume 0.1-2L 2-5L
Body diameter ≤100mm ≤175mm
Height ≤310mm ≤310mm
Neck diameter ≤30mm ≤45mm
Mould Cavity 1 1
Mold thickness 240mm 260mm
Mold size 250*240*360 250*260*360
Main machine power Electrical source power 380V/220V 50/60HZ 3Phase 380V/220V 50/60HZ 3Phase
Power 25kw 25kw
Really use power 7kw 10kw
Air system HP air compressor 1.2m3/min 3.0Mpa 1.4m3/min 3.0Mpa?
Air dryer 1.0m3/min 3.0Mpa 2.0m3/min 3.0Mpa
Cooling water Water Chiller 3HP 3HP
Machine Size(L*W*H) 1500*1200*1800mm 2000*1200*1800mm
Weight 1500kg 1800kg
Preform unscrambler Size(L*W*H) 2000*950*2480mm 2000*950*2480mm
Weight 250kg 250kg

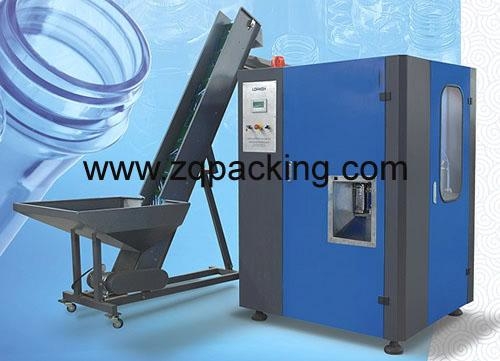

Product Image
